Our LED Display Products

Freeled Q Series panels, DH / AH / DKP-H outdoor cabinets, DM Rental, and R Series flexible displays — custom factory production.

FREELED DM Rental Series

Rental

DM-Pro Indoor — P2.6 / P3.9

Platform design increases the versatility of the product. Supports fixed installation, hoisting, and wall mounting methods. Hub and cable connections are compatible with all DM modules.

Pixel PitchP2.6 / P3.9 mm

Module Size250×250 mm

Cabinet Size500×500 / 500×1000 mm

Brightness≥1000 cd/m²

Refresh Rate6000 Hz

Gray Scale14–16 bit

Chip TypePWM SS

Supply Voltage4.2V / 4.5V

P2.6P3.9IndoorGOB6000HzRental

GOB Coating Technology

High-quality coating technology provides stable and reliable performance.

Fast Assembly / Disassembly

Supports fixed installation, hoisting, and wall mounting methods.

Standard Aspect Ratios

The 1:1 cabinet design can be transformed into any standard screen size in any orientation.

Save technical details

Download product card →

FREELED DM Rental Series

Rental

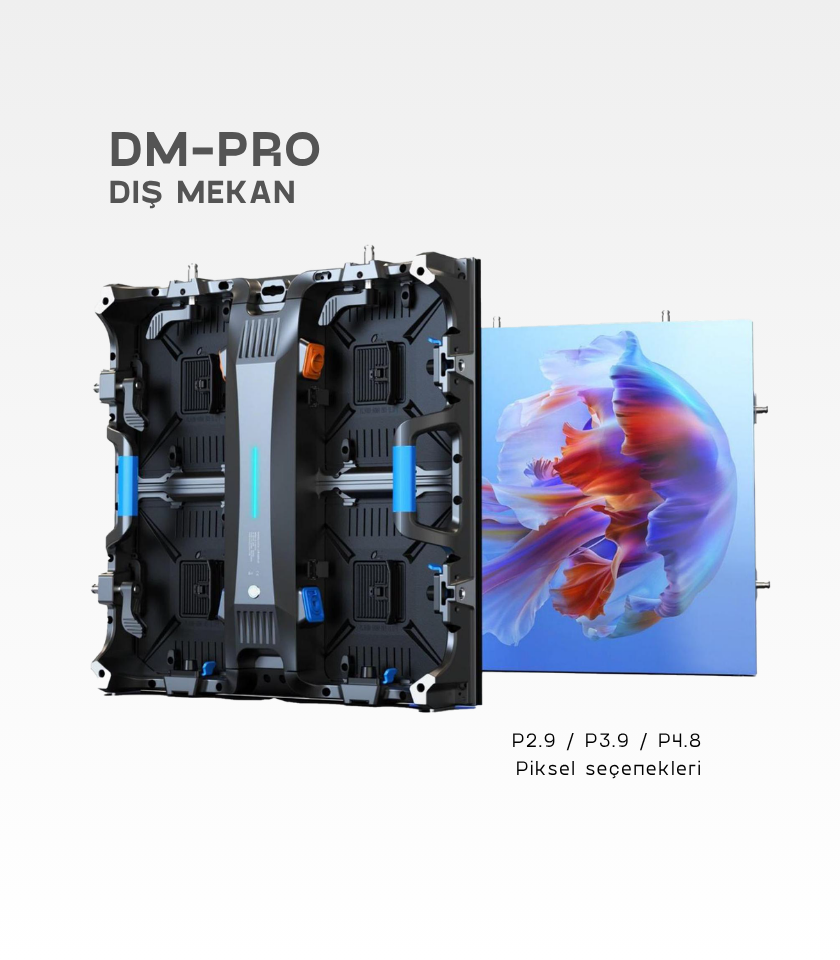

DM-Pro Outdoor — P2.9 / P3.9 / P4.8

High-brightness outdoor rental display designed for concerts, fairs, theaters, and stage applications. Durable against harsh weather conditions with super silicone protection.

Pixel PitchP2.9 / P3.9 / P4.8 mm

Module Size250×250 mm

Cabinet Size500×500 / 500×1000 mm

Brightness≥5000 cd/m²

Refresh Rate7680 Hz

Gray Scale14–16 bit

Chip TypePWM SS

Supply Voltage4.2V / 4.5V

P2.9P3.9P4.8Outdoor7680Hz≥5000 nits

Ultra-High Refresh Rate

High refresh rate from 3840Hz up to 7680Hz for smoother and clearer image effects.

Super Protection

High-performance, weather-resistant outdoor protective silicone.

GOB Coating

High-quality coating technology that meets the application needs of various scenarios.

Save technical details

Download product card →

FREELED DH Outdoor Series

Outdoor

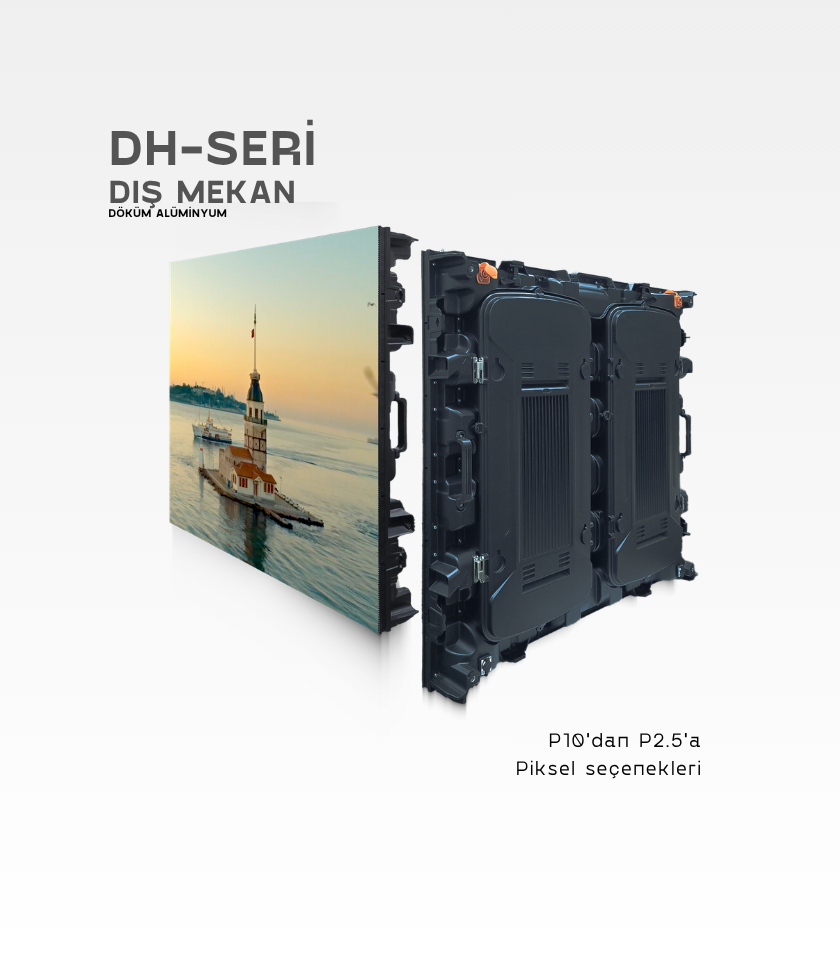

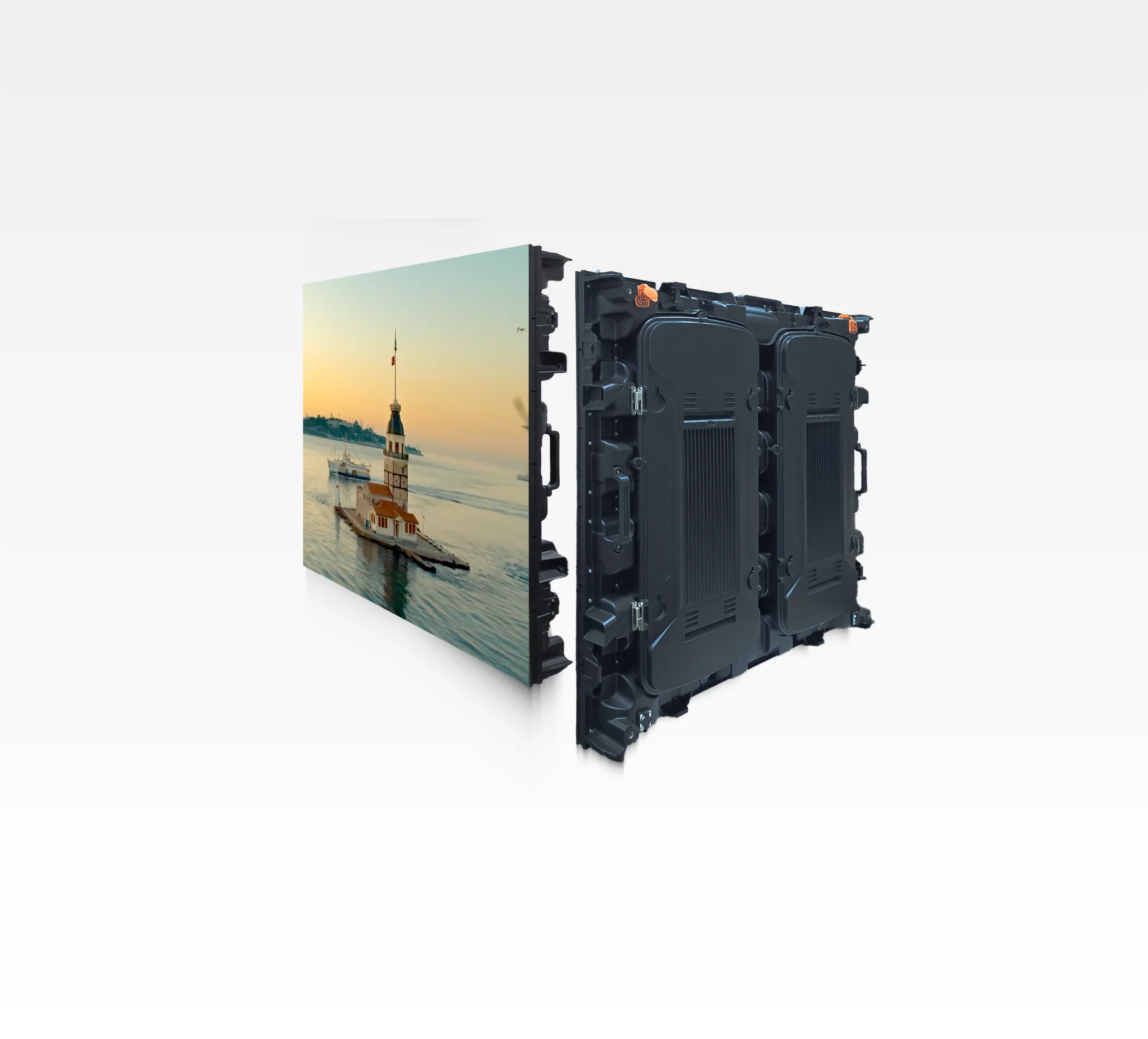

DH Series — Die-Cast Aluminum Cabinet

The DH Series is a high-brightness and durable LED display cabinet designed for outdoor use. Thanks to its die-cast aluminum body, it offers lightness and strength together, while its modular structure allows easy installation and maintenance.

Product CodeDH Series

Panel TypeFreeled Q Series P2.5–P10

Body MaterialDie-cast Aluminum

Physical Cabinet Size960×960×90 mm

IP RatingFront IP65 / Rear IP45

Power ConsumptionMax 850 / Avg 300 W/m²

Cooling2 hot air exhaust fans

ControllerHuidu R708 Receiver

Die-Cast AluminumIP65960×960mmHuidu R708

Thin and Lightweight

Cast aluminum cabinet, lightweight and ultra-thin. Fully suitable for front and rear maintenance.

Easy Installation

Cabinets lock together perfectly thanks to the surrounding locking system.

Save technical details

Download product card →

FREELED AH Outdoor Series

Outdoor

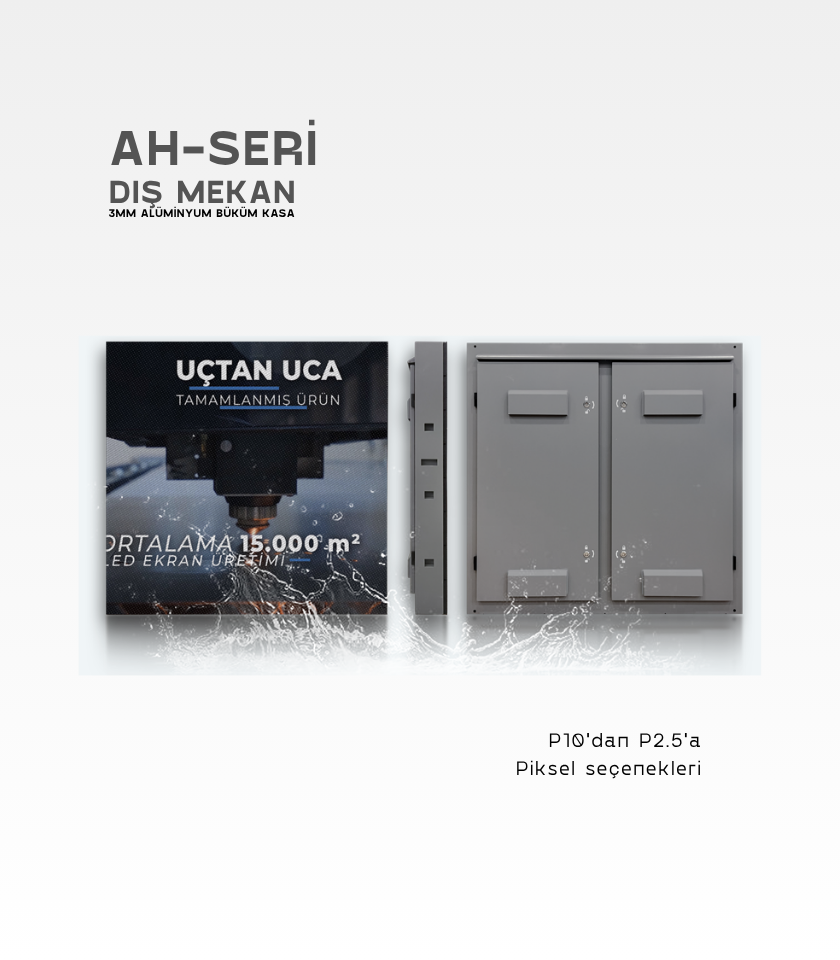

AH Series — Aluminum Sheet Cabinet

The AH Series is a durable LED display cabinet made of 3mm aluminum plate with 120mm depth. It offers easy installation for professionals while providing long-term use.

Product CodeAH Series

Panel TypeFreeled Q Series P2.5–P10

Body Material3mm Aluminum Sheet

Physical Cabinet Size960×960×120 mm

IP RatingFront IP65 / Rear IP45

Power ConsumptionMax 850 / Avg 300 W/m²

CoolingAtmospheric Fan (Optional)

ControllerHuidu R708 Receiver

Ultra Thin 12mmIP653mm Aluminum960×960mm

Lightweight Long-Lasting Design

Cabinet produced from 3mm aluminum sheet, long-lasting with electrostatic oven painting.

Easy Installation for Professionals

Joins perfectly at mounting points, recessed slots facilitate cable routing for a clean look.

Save technical details

Download product card →

FREELED DKP-H Outdoor Series

Outdoor

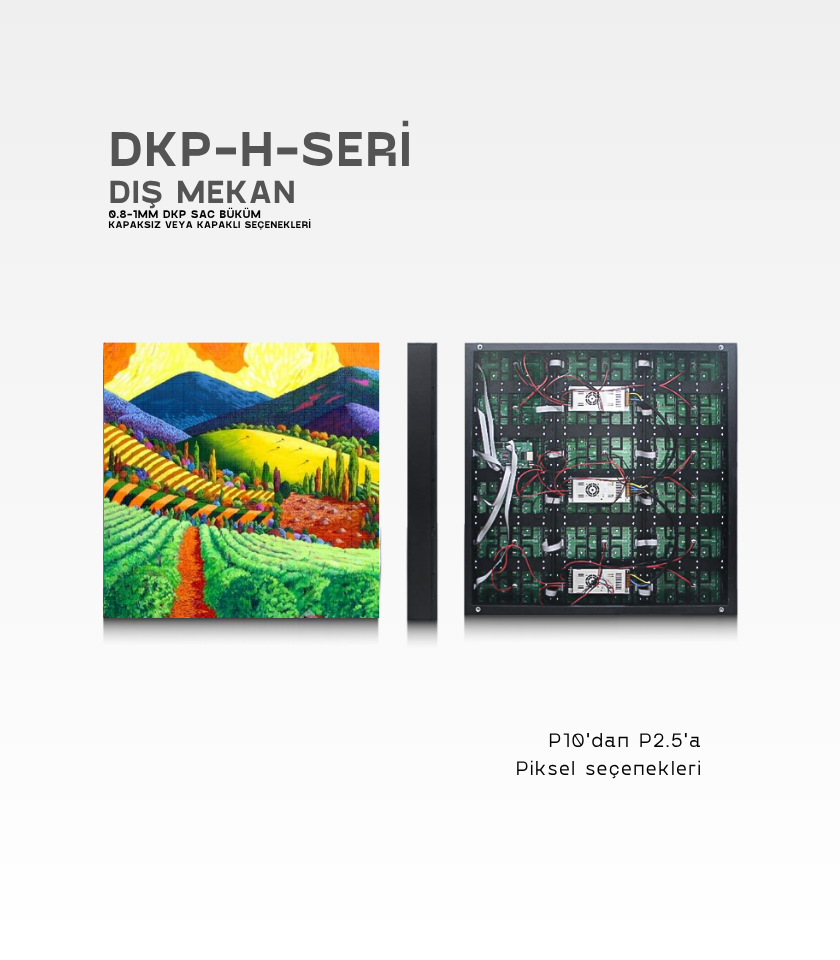

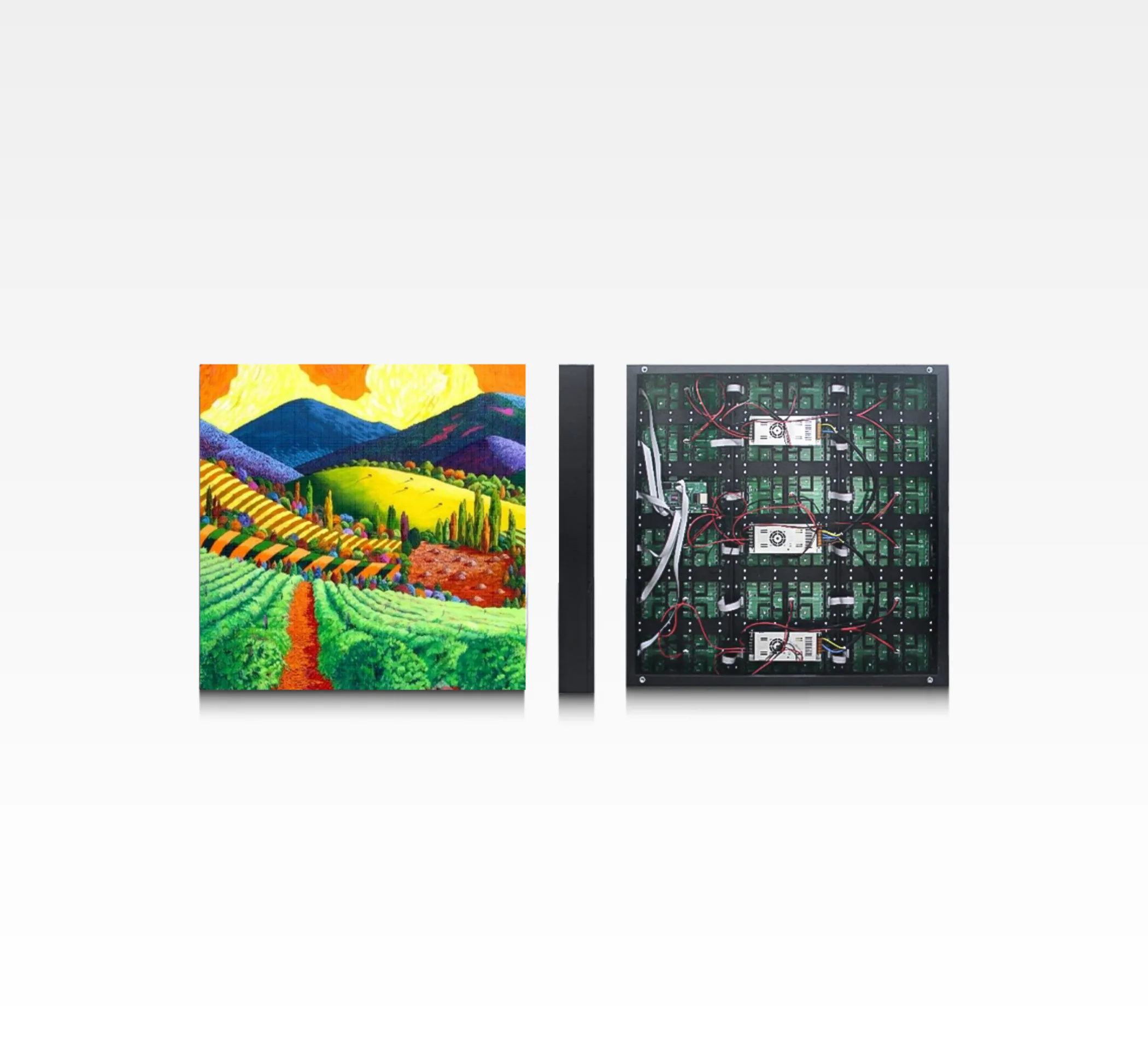

DKP-H Series — Totem, Curve & Custom Projects

Manufactured from 1mm DKP sheet metal, this LED display cabinet is a true price-performance product. Thanks to its flexible structure, it is the preferred choice for custom area project productions, providing the perfect solution for curve and 90-degree corner projects.

Product CodeDKP-H Series

Panel TypeFreeled Q Series P2.5–P10

Body Material1mm DKP Sheet (Oven Painted)

Physical Cabinet Size960×960×80 mm

Weight17 kg

IP RatingFront IP65

Power ConsumptionMax 850 / Avg 300 W/m²

ControllerHuidu R708 Receiver

Curve & 90°Totem CompatibleIP6517kgPrice-Performance

DKP-H Series — Totem, Curve & Custom Projects

Lightweight & Durable

17kg weight, long-lasting design with electrostatic oven painting.

Totem Cassette & Custom Projects

Perfect solution for applications inside steel LED display cassettes. Ideal for curve and corner projects.

Save technical details

Download product card →

FREELED Outdoor R Series

Flexible Display

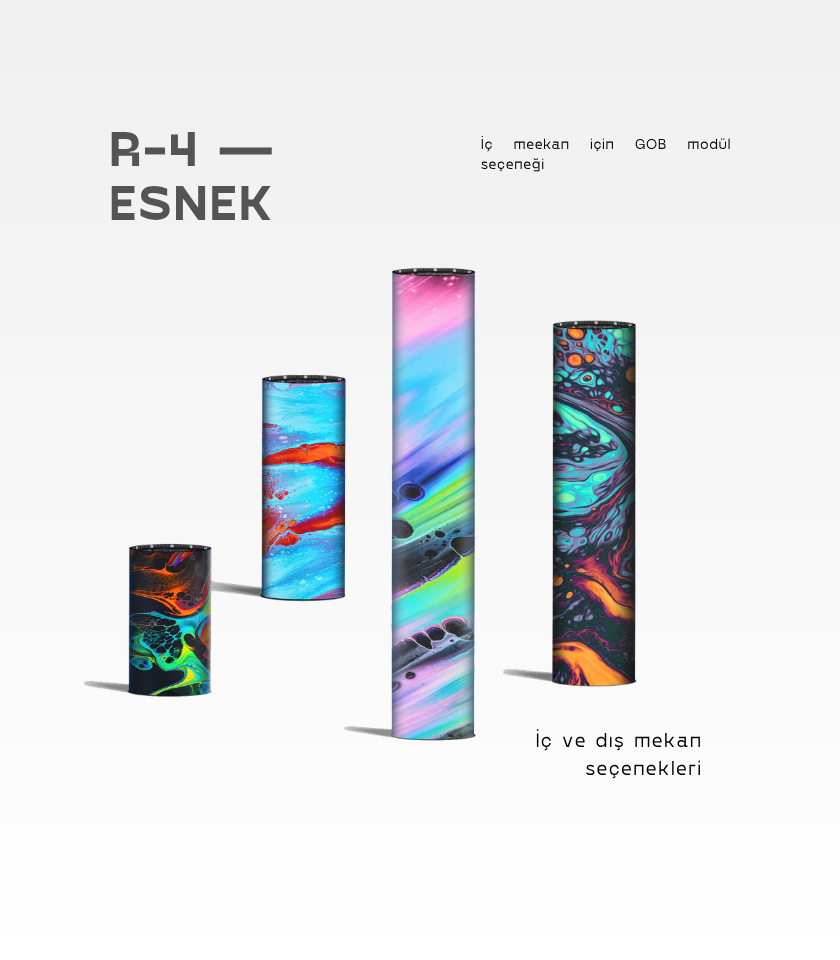

R-4 — Flexible / Cylindrical / Wave

Silicone back cover design makes the LED module softer and supports wide-angle display. Creates cylindrical, strip, and wavy displays for more creative and versatile applications.

Pixel (mm)P4

Scan1/10

Module Size320×160 mm

Pixel Count62,500 dots/m²

Power Voltage≥4.5V

Brightness≥5000 cd/m²

Color Temperature6500–18000K Adjustable

Refresh Rate4200 Hz

Max Power Consumption≤525 W/m²

Avg Power Consumption≤175 W/m²

P4FlexibleCylindrical≥5000 nits4200Hz

Beyond Flat Surfaces

Enables more creative and versatile designs by creating cylindrical, strip, and wavy displays.

Dynamic Energy Saving

Uses PWM-SS chip and 4.2V power supply for dynamic energy saving.

Save technical details

Download product card →

FREELED Q-H Outdoor Series

Panel & Component

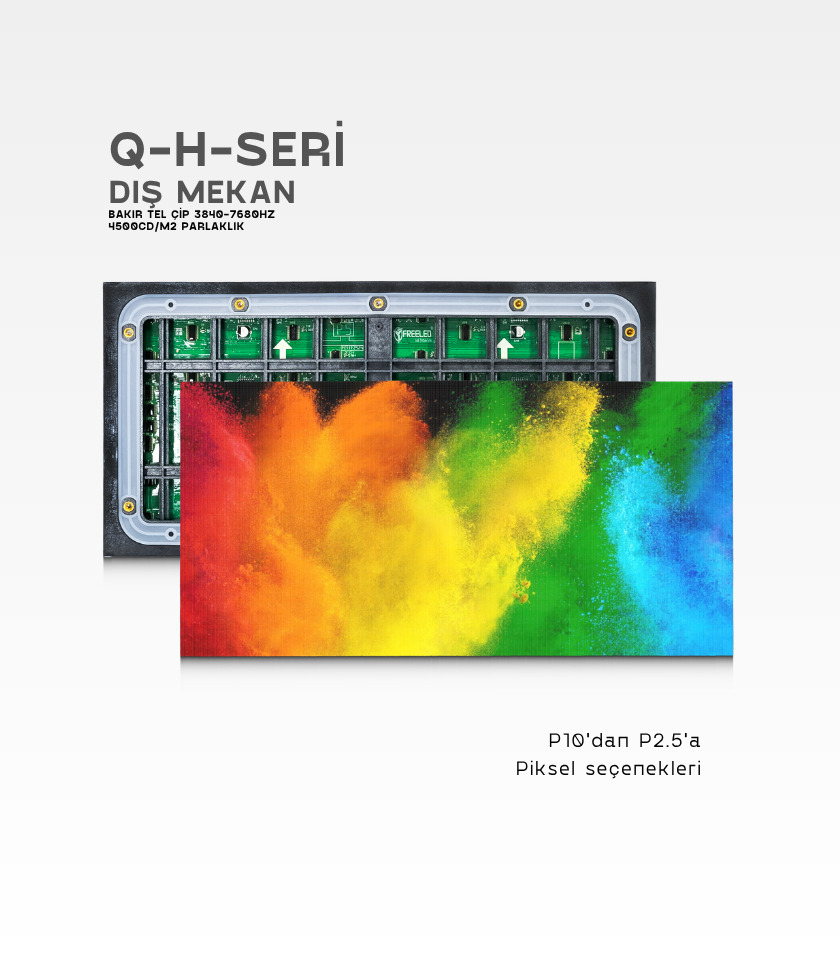

Q-H Panel — P2.5 / P3 / P4 / P5

Offers vibrant and natural colors with wide color gamut and adjustable color temperature. Copper-wire LED chip provides high processing maturity and wide lighting angle. Dynamic energy saving with PWM-SS chip.

Q-H5 PixelP5 — 40,000 dots/m²

Q-H4 PixelP4 — 62,500 dots/m²

Q-H3 PixelP3 — 105,625 dots/m²

Q-H2.5 PixelP2.5 — 160,000 dots/m²

Module Physical Size320×160 mm

Brightness4500 cd/m²

Color Temperature6500–18000K Adjustable

Contrast≥5000:1

Refresh Rate≥3840 Hz

Gray Level13–16 Bit Adjustable

P2.5P3P4P54500 nits≥3840Hz

Wide Color Gamut

Wide color gamut and user-specific color temperature adjustment for vibrant and natural colors.

Dynamic Energy Saving

Uses PWM-SS chip and 4.2V power supply for dynamic energy saving.

Copper Wire LED Chip

High-grade copper wire lamp with high processing maturity, wide illumination angle, and good stability.

Save technical details

Download product card →

FREELED Indoor Series

Indoor

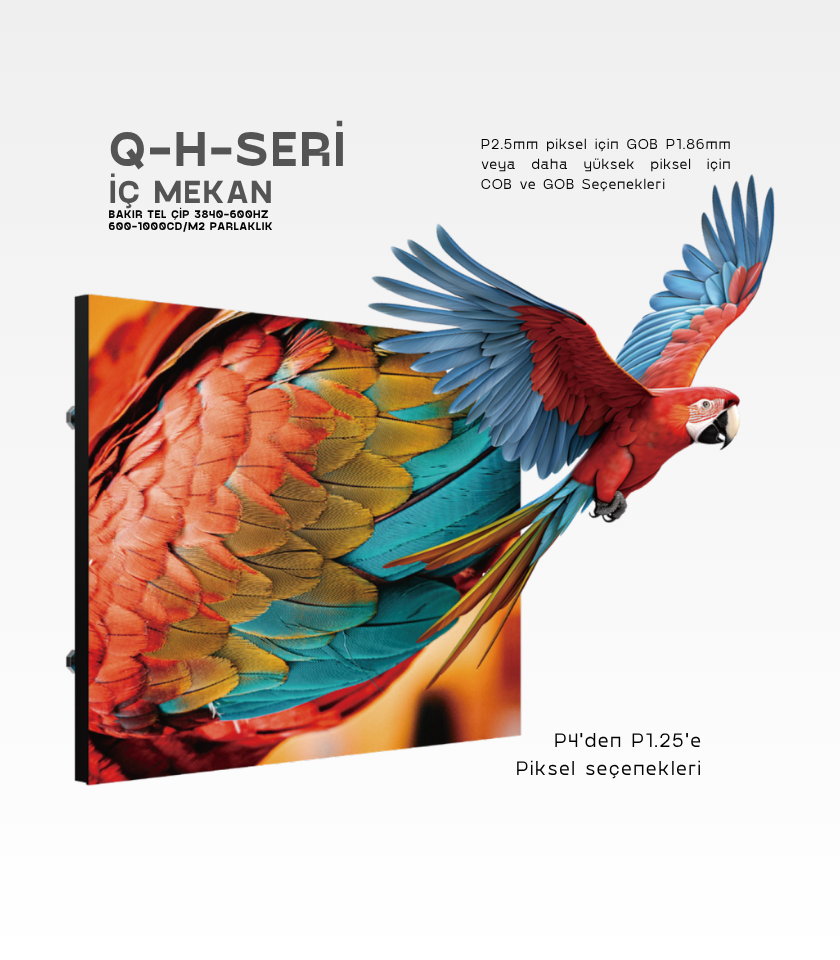

Indoor LED Display — Custom Production P1.5–P4

Factory-built custom indoor LED displays for meeting rooms, malls, event halls, and TV studios. Silent fanless design, high resolution, and color accuracy.

Pixel PitchP1.5 – P4 mm

Brightness600 – 1200 cd/m²

CoolingFanless (Silent)

IP RatingIP40

Refresh Rate≥3840 Hz

CabinetCustom size production

P1.5–P4600–1200 nitsFanlessIP40Custom

Indoor LED Display — Custom Production P1.5–P4

Silent Fanless Design

Noiseless operation for meeting rooms and broadcast studios.

Custom Factory Production

Production in non-standard sizes and dimensions. Custom configuration for every project.

Save technical details

Download product card →

FREELED Signage Series

LED Signage

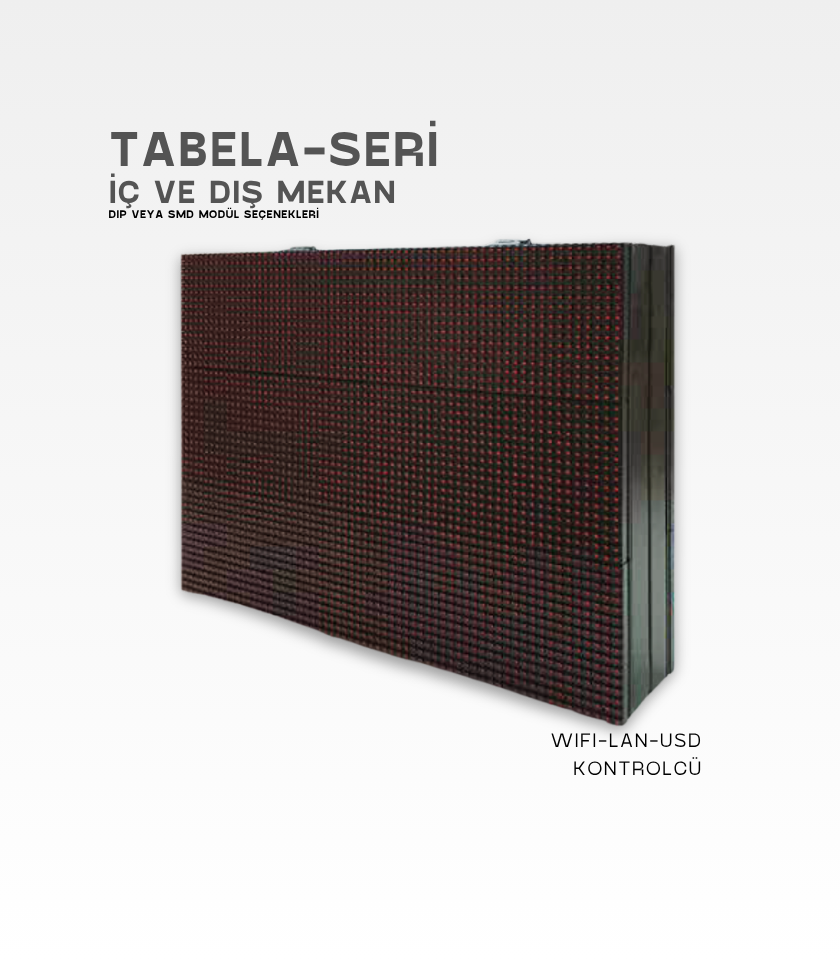

LED Signage / Panel — Single Color & RGB

Single-color or RGB full-color LED signage for store, restaurant, hospital, and office entrances. Optional software integration for queue management, info panels, and dynamic content management.

Color OptionSingle Color / RGB Full Color

ControlWiFi / Ethernet / Cloud

Software IntegrationOptional (Queue, POS, etc.)

ProductionCustom size and dimensions

Single ColorRGBSoftware IntegrationQueue System

LED Signage / Panel — Single Color & RGB

Software Integration

We develop custom software with our experience in appointment system integration, like TJK horse hospitals.

Fast Installation

Ready-to-install cabinet design, fast assembly, and easy use.

Save technical details

Download product card →

Our Certificates:CE-2025PTC-5678TRM-24-2933/01EN 55032:2015EN 55035:2017ISO 9001
