Aluminum Bending Outdoor LED Display
CNC-bent aluminum cabinet outdoor LED display. More flexible dimensions than die-cast, lighter than DKP sheet — preferred for custom-form facades and curve projects.
FREELED Aluminum Bending Series

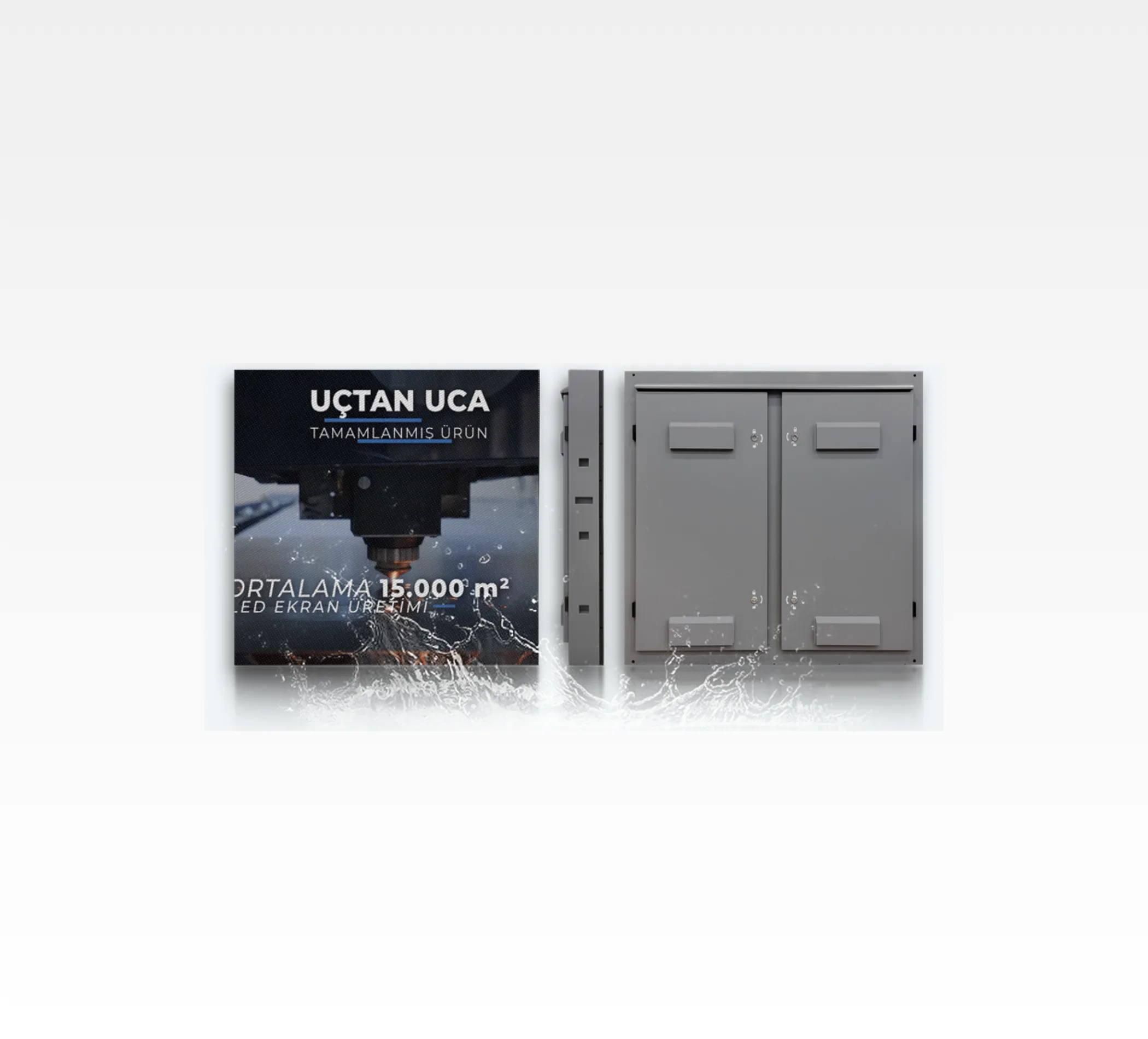

OutdoorAluminum Bending Outdoor — P2.5 / P3.07 / P4 / P5 / P10
Cabinet made from 2-3 mm aluminum sheet with CNC cutting and bending. Electrostatic powder coating and silicone sealing for IP65. Suitable for custom (curve, angular) forms.
Pixel PitchP2.5 / P3.07 / P4 / P5 / P10 mm
BodyCNC-bent Aluminum
Material Thickness2-3 mm
Cabinet SizeCustom / 960×960 mm
IP RatingFront IP65 / Rear IP45 (closed)
Brightness≥5500 cd/m²
Refresh Rate3840Hz+
Form OptionsFlat / Curve / Angular
Minimum Bend RadiusR500 mm
FinishElectrostatic powder coat
Cloud SupportStandard
Light SensorOptional
HTML5 SupportStandard
Stream SupportOptional
Aluminum BendingCNCCurve CompatibleIP65Custom FormLightweight
CNC Bending Flexibility
Curve, angular and custom-form cabinets with low tooling cost.
Lightweight
Aluminum lightness reduces tower and construction load; easier installation.
Corrosion Resistance
Aluminum + powder coat combo delivers long life in coastal / high-humidity environments.
For your project
Get QuoteGet a quote directly from the manufacturer →
Use Cases
Curve facade LED displays
3D corner facade applications
Gas station totems
Custom-design billboards
Frequently Asked Questions
Aluminum bending vs die-cast?
Die-cast is single-piece high-pressure cast with the highest flatness. Bending is CNC cut + bent — more flexible dimensions and lower tooling cost.
Curve supported?
Yes. R500 mm minimum bend radius for curve and angular projects.
Aluminum Bending LED Display Quotation
Direct factory pricing for your custom-form outdoor screen project.
