Die-Cast Indoor LED Display
High-pressure die-cast aluminum body with ultra-thin bezel, excellent flatness (±0.05 mm) and rigid structure. Premium meeting rooms, studios and control rooms.
FREELED AH Die-Cast Series

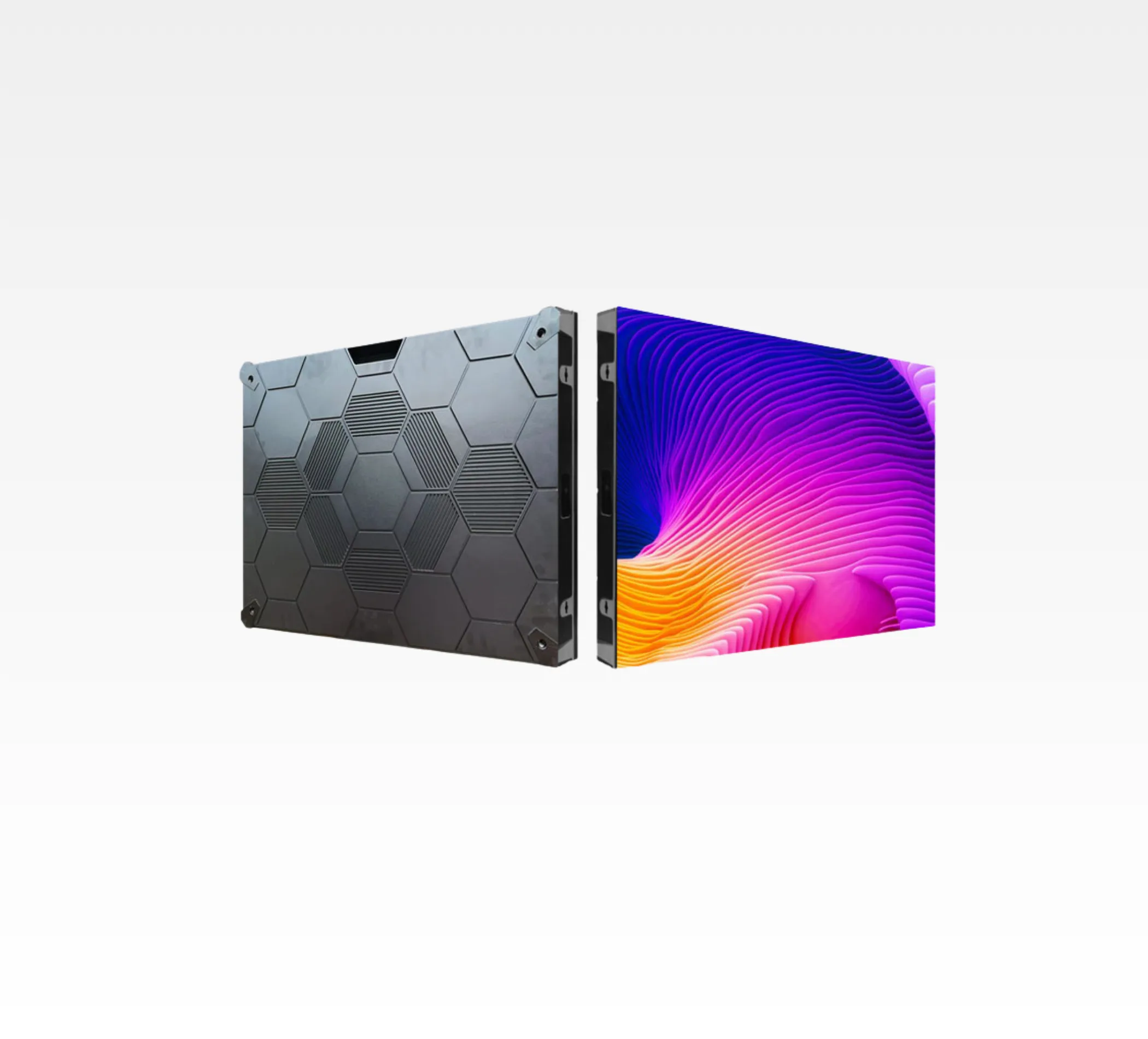

IndoorAH Series Die-Cast — P1.8 / P2.5 / P3.9
High-pressure die-cast aluminum single-piece cabinet. Front service, fast module swap, thin bezel. Seam lines invisible on fine-pitch applications.
Pixel PitchP1.8 / P2.5 / P3.9 mm
Cabinet Size500×500 mm
Body MaterialDie-Cast Aluminum
Flatness Tolerance±0.05 mm
Brightness≥1000 cd/m²
Refresh Rate3840Hz+
Greyscale14–16 bit
ServiceFront service
Cloud SupportStandard
Light SensorOptional
HTML5 SupportStandard
Stream SupportOptional
Die-Cast Al.P1.8P2.5P3.9Front ServiceUltra Thin
Ultra Thin Bezel
Die-cast body brings cabinet seam under 0.3 mm.
High Flatness
±0.05 mm tolerance; no panel seams visible even on large screens.
Front Service
Modules can be swapped from front; no rear access needed for flush-mounted screens.
For your project
Get QuoteGet a quote directly from the manufacturer →
Use Cases
Premium meeting rooms
TV studios
Control rooms (NOC/SOC)
Corporate lobby
Frequently Asked Questions
Die-cast vs DKP sheet?
Die-cast is single-piece high-pressure cast with the highest flatness. DKP sheet is stamped sheet metal — cost-effective and flexible for custom sizes.
Cabinet lifetime?
Aluminum body 20+ years; LED module L70 100,000+ hours.
